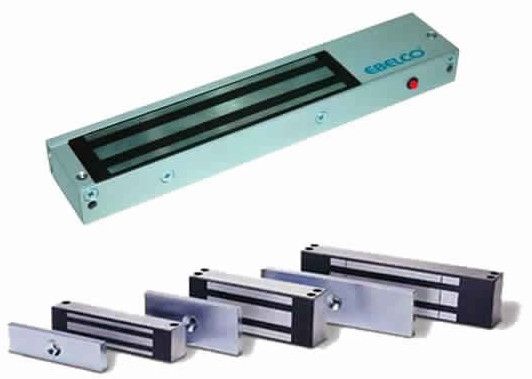

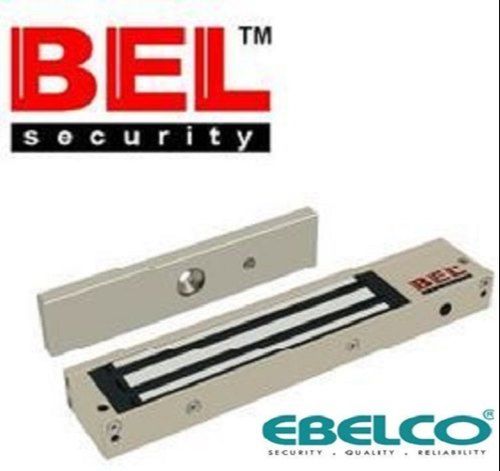

Ebelco Electromagnetic LOCK-1200-S-LED

Home › Ebelco Electromagnetic LOCK-1200-S-LED


Ebelco Electromagnetic LOCK-1200-S-LED

Ebelco Electromagnetic LOCK-1200-S-LED

Link Copied
4,700.00 - 4,900.00 / piece( + 18% GST applicable)
Edit
Get Best Price
Business Type Supplier, Retailer
Material ALUMINIUM
Finishing Polished
Shape RECTANGLE
Click to view more
Request to Call Send Enquiry

Product Details

Color
Metallic, Shiny Silver, ALUMINIUM SILVER
Size
180/100/30
Certification
ROHS Certified
Grade
N52
Feature
Durable, High Coercivity, Prefect Finished, Robust Construction, Strong & Rugged
Country of Origin
CHINA
Current Draw
12V @ 500mAx2 ; 24V @265mA x2(+-5%)
Hall Effect Contact
SPDT rated 1A at 24 VDC
Magnetic Contact Rating
40 VDC, 0.25 A, 10W
Anti-Rust Surface Treatment
Blue Zinc Plating
Operating Temprature
0~55 Degree C
Magnet Dimension
266mm x 67mm x 39mm
Armature Dimension
185mm x 61mm x 16.5mm
Minimum Order Quantity
1
Availability
4.80 kg
Model Number
1200-LED-MC
Brand Name
EBELCO
Holding Force
Up To 1200 Lbs
Lock Type
ELECTRO MAGNETIC
Operating Humidity
0~95% ( Non Condensing)
Ideal For
DOOR
Usage/Application
ACCESS CONTROL
Brand
EBELCO
Product Code
1200-S
Port
Bangalore
Payment Terms
Other
Delivery Time
2-4 DAYS
Packaging Details
COMPANY STANDARD PACKING

Features:

  • Dual Voltage Selectable (12 VDC / 24 VDC)
  • Low Current Consumption
  • Reliable Holding Force
  • Hall Effect Sensor Monitoring Output Green/Red LED
  • Indication for EM Lock Status Durable & Silence Operation
  • Cosmeticize Anodized Aluminum Casing Surge & Spike Protection
  • PCB Anti-Tamper Jam Nuts
  • Full Range of Optional Brackets
  • Anti Residual Magnetism Kick Off Button
