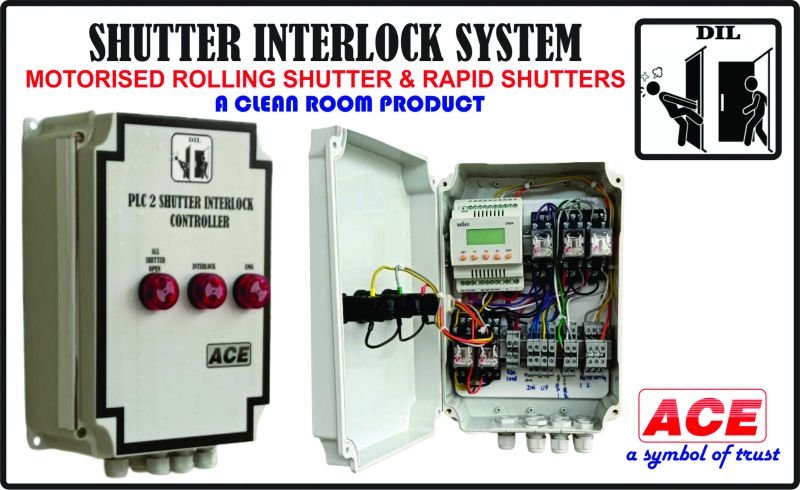

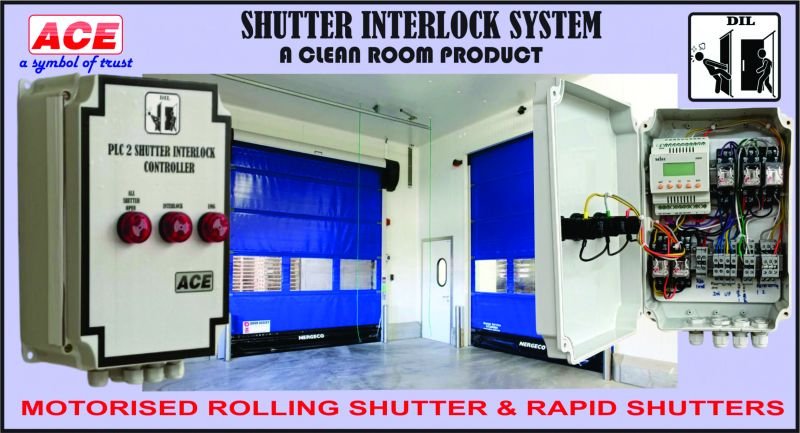

Shutter Interlock System

The SShutter Interlock Systems controls more than one shutter prevent the opening of both Shutter at the same time avoiding direct exposed to Dust and Particles, between Material Entry and Material Exit Shutters contamination and maintaining Clean & Hygienic environment through Interlocking System.

Shutter Interlocking Systems, are same as Door Interlocking System used in Airlock Lock Control System for Clean Room Areas, a mutual locking  of Doors / Shutter and prevent the opening of both door at the same time.

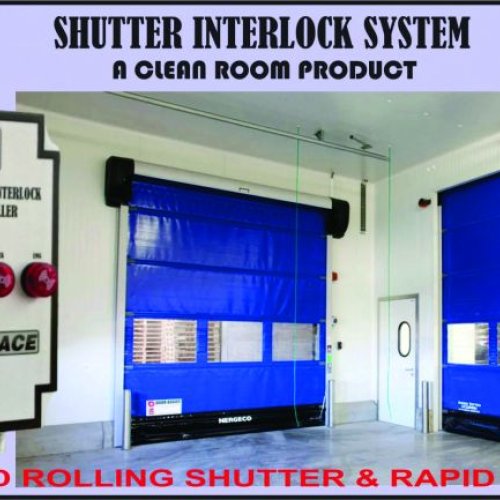

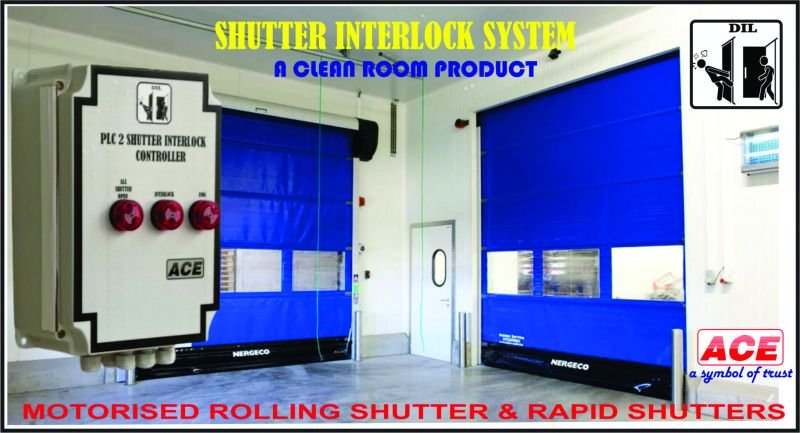

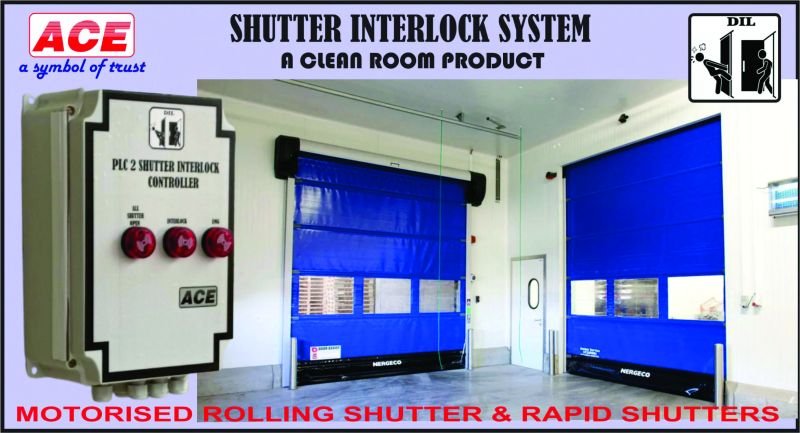

The Shutter Doors are like Motorized Rolling Shutter and Rapid Shutters are giant wide Doors for Material Entry and Material Exit for Factories / Hospitals / Food Processing & Manufacturing industries /Malls and Storage Area, and Raw Material Stores in Pharmaceutical Company s.

Features & Specification

* PLC Based Control System

* Semi Automatic Function

* Function of Open/Close by Existing Switches

* Emergency OPEN Switch - Available

* Power on CLOSE - Available

* Shutter’s  Close monitored with Magnetic Feedback Switch

* Potential free Contact for Interlock Control between Shutters

* Supports Mortised Shutters and Rapid Doors

* Status Panel Indicator with Buzzer for Operation & Error Indication.

* Power Source-230VAC

* Terminal Connectors for I/O’s

* Integration of Air Curtain O/P - Optional
